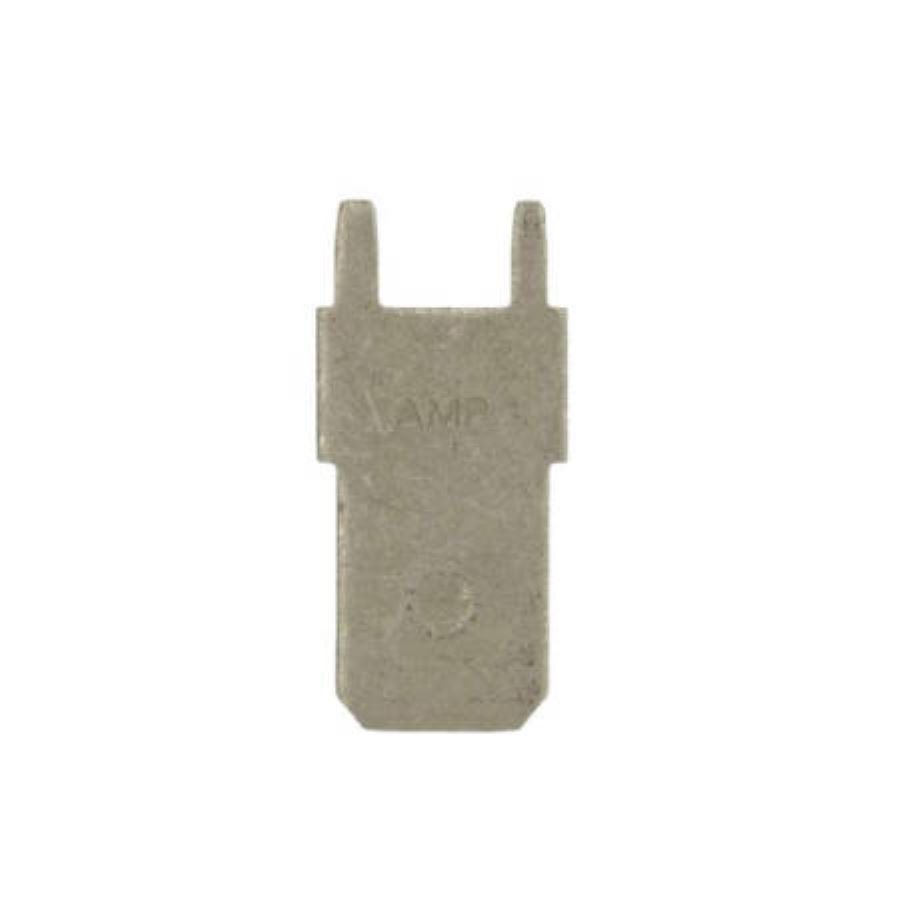

62409-1
Manufacturer:
TE Connectivity
Mfr.Part #:
62409-1
Datasheet:
Description:
Terminals Through Hole 0 AWG Male
| Parameter | Value |
|---|---|
| Length | 15.8 mm |
| Width | 6.35 mm |
| Termination | Through Hole |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -30 °C |
| Material | Brass |
| Packaging | Bulk |
| Depth | 7.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | PC Tab |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Grey |
| Gender | Male |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Terminal Material | Brass |
| Hole Diameter | 1.4 mm |
| Number of Poles | 1 |
| Wire/Cable Gauge | 0 AWG |
| Insulation | Non-Insulated |
| Plating | Tin |
| Termination Style | Through Hole |
| Body Plating | Copper |
| PCB Thickness | 3.18 mm |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | 7.9248 mm |
| Tab Thickness | 810 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 124
Distributors
pcbx
pcbxUnit Price$0.33802
Ext.Price$0.33802
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33802 | $0.33802 |
| 10 | $0.16901 | $1.69010 |
| 50 | $0.13001 | $6.50050 |
| 100 | $0.10001 | $10.00100 |
| 500 | $0.09218 | $46.09000 |
| 1000 | $0.08497 | $84.97000 |
| 3000 | $0.07340 | $220.20000 |
| 5000 | $0.07087 | $354.35000 |
| 10000 | $0.06842 | $684.20000 |
| 30000 | $0.06606 | $1981.80000 |
| 50000 | $0.06378 | $3189.00000 |
| 100000 | $0.06158 | $6158.00000 |
